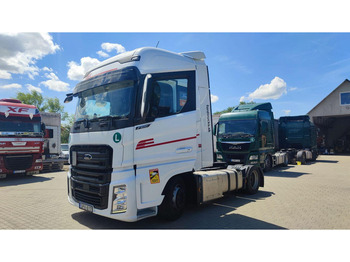

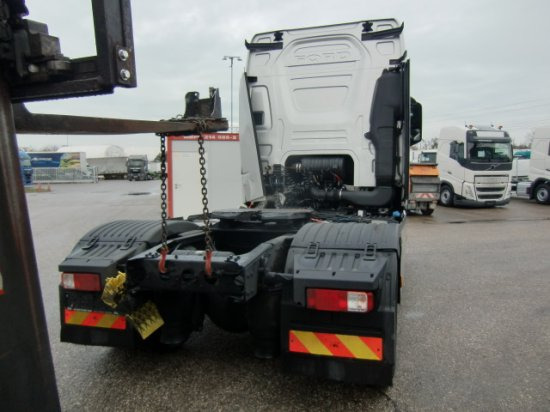

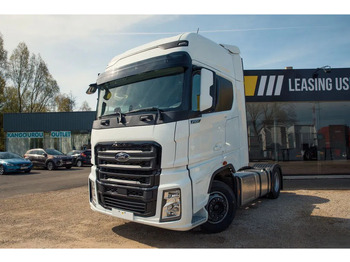

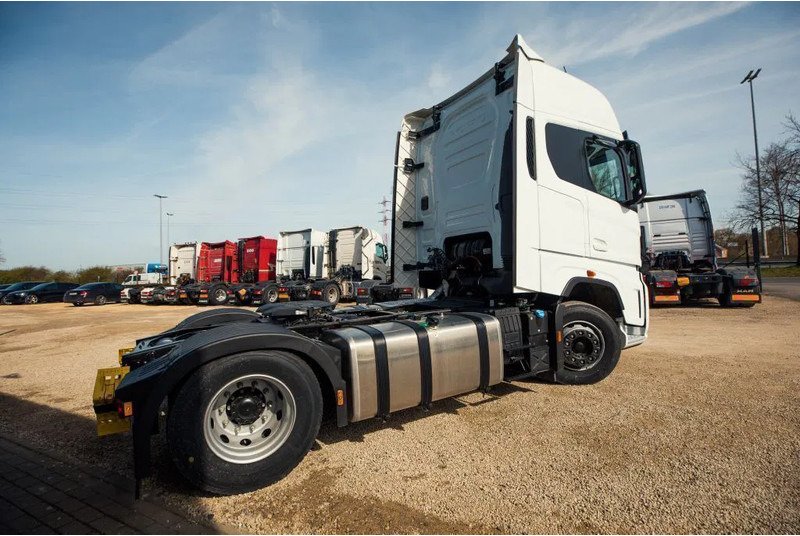

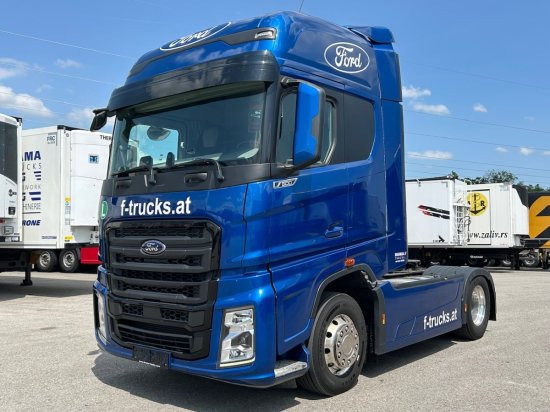

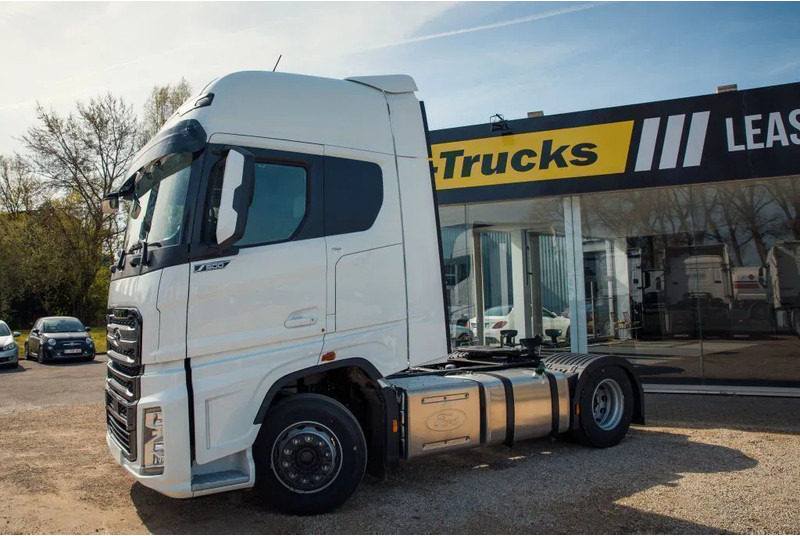

Tracteur routier FORD F-MAX 500

UAB FLEETON oficialus FORD Trucks atstovas Lietuvoje

Basic Features

Vehicle Type Tractor

Axle 4x2

Emission Euro 6D

Cabin Type 2.5m Mega Cab

Wheelbase (mm) 3600

Engine

Type Ecotorq 12.7 L

Displacement [cc] 12740

Diameter x Stroke 130 mm x 160 mm

Power 500 PS

Torque 2500 Nm

Oil Filling Volume [l] 50 L

Coolant volume [l] 57 L (with Intarder 77 L)

Transmission

Clutch 430mm Single Disc

Automated Transmission ZF 12 TX 2620 (16,688-1)

Steering

Power Assisted Single Circuit

Chassis

Chassis thickness [mm] 8mm

Chassis Strength [MPa] 500 MPa

Suspension (Rear/Front) Parabolic Leaf Springs / Air Suspension

Axle Single Reduction

Tyre & FDR Information

5th Wheel Height FDR Tyre

1100 mm 5th Wheel 2,47 or 2,64 315/70 R22.5

Braking System

Brakes (front/rear) (Ø.mm x mm. length) 430 x 45 - Disc Brakes

Braking System Dual Brake Circuit - Air Processing Unit with Integrated Oil Seperator and Heater

Engine Brake Power Max. 400 kW(Vehicle Level)

Hydraulic Retarder max. 600kW / continuous 160kW

Electrical System

Battery 225 Ah

Alternator / Starter Motor 130 A / 6.5 kW

Tanks

Fuel Tank 600 + 450 L Aluminum

SCR Tank 78 L

Dimensions (mm)

Front Overhang 1500

Wheelbase 3600

Overall Length 5950

Overall Vehicle Height (for 1100mm 5th Wheel) 3915

Overall Cab Length 2890

Rear Overhang 850

Overall Vehicle Width (Excl. Mirrors) 2540

Ground Clearance - Front (for 1100mm 5th Wheel) 286

Ground Clearance - Rear (for 1100mm 5th Wheel) 238

STANDARD EQUIPMENT

• Automated Transmission

• 225Ah Battery

• C2AS Air Suspension

• Air Suspended Cab

• Automatic Climate Control Unit

• Bed Area Remote Control System

• Black Grille

• Body Colour Exterior Door Handle

• Body Colour Exterior Mirror Cover

• Body Colour Front Bumper

• Body Colour Hood Applique

• Cruise Control & Speed Limiter

• Double Bed Sleeper Compartment

• Driver Seat - Heated & Aır Suspended

• Dry Type Heater

• EBS (Electronic Brake System)

• Electrically Heated & Power Adjusted Mirrors

• Electrically Operated Sunroof

• Front & Rear Underrun Protection

• High Series Cluster Wıth 8'' Display

• Lane Departure Warning System

• Long Front Bumper

• Rain Sensor (Contains Auto Headlamp Control)

• Switchable Air Compressor

• 1100mm 5th Wheel & 2,47 FDR

• AEBS (Advanced Emergency Braking System)

• Hydraulic Retarder

• Comfort Plus Pack* (Includes Premium Seat Fabric,

Multimedia System with 7.2'' Touch Screen & Navigation,

Mini Fridge, Park Heater, Predictive Cruise Control and

Electrically Operated Cab Tilting)

-

Guarantee: This truck comes with a

12 months warranty
