Matériel de manutention Hydraulic power unit with air motor

for scissor lifts, aerial platforms, etc.

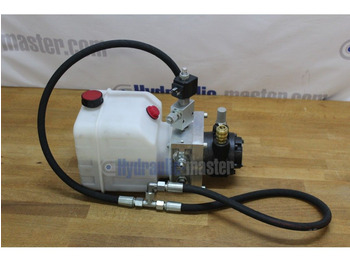

Hydraulic power unit with air motor for scissor lifts, lifting platforms, mining machines, rail vehicles

Hydraulic power unit driven by an air motor with vane cells

Product features:

- Max. Power : 2.8 H.P./2.1 kW

- Oil flow rate 2.5 litres/min

- Max. operating pressure bar: 200 bar

- Oil tank: 4 litres

- electric valve and pressure relief valve

Other options/features *:

- Displacement pump - 0.65ccm - 7ccm

- Pressure relief valve adjustment - 30-200bar

- Plastic and steel tanks up to 25 litres

- Available modular valves

- Drain solenoid valves

- Hand pump for emergencies

- Available oil return flow adjustment

- Horizontal and vertical mounting

- Electric motors 12VDC, 24VDC, 230AC or 400AC

Other information:

ATEX certification

Manufactured in E.U.

• - for other options please contact the technical department

Applications: Scissor lifts, light trucks, car lifts, mining machinery, rail vehicles, etc.

V4 series air vane motor:

Torque at max. power: 3.6lbs ft./4.9 Nm

Torque at standstill: 4.8 lbs ft./6.5 Nm

Min. starting torque: 3.5 lbs ft./4.8 Nm

Max. Max. rotational speed: 4000 rpm

Note: With air inlet at connection 'A', rotation is clockwise on the shaft.

For reverse direction of rotation, reverse the connections.

Maximum temperature: -20°C to +60°C (-4°F to 140 °F)

Silencer supplied with the motor

Max. Shear force on the shaft 170 N (40 Ibf.)

Axial loads should be kept to a minimum

Mass 3.80 kg
