Relieuse Horizon BQ-440 | HT-70 | SL-40

Number of Colours: 4

-

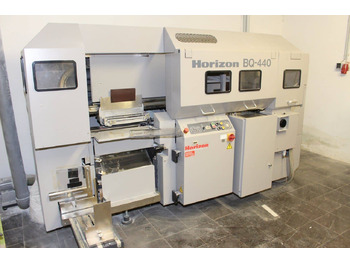

Horizon Perfect Binder BQ-440, used

The Horizon BQ-440 is a 4-clamp automatic perfect binder with automatic cover feeding, delivering flawlessly bound books with consistently high quality, all operable by a single person. Operation is straightforward and involves simply placing the material to be bound into the clamping carriage.

Key Features:

- Processes books from 0.5 to 50 mm thick and with spine lengths from 75 to 320 mm, at an hourly output of up to 1,200 books

- The standard milling unit is equipped with additional slotting knives and dust brushes, and can be easily disengaged by folding it away

- Milling depth adjustable up to 3 mm

- Automatic cover feeding via suction feeder ensures secure and consistent positioning of the cover to the book block

- Standard scoring device for four-fold scoring of the cover

- Convenient one-person operation

- Excellent binding strength, as glue is applied by two counter-rotating glue drums, ensuring optimal adhesion to the paper fibers

- Very robust construction, suitable for high-performance operation and long service life; standard central lubrication

- Efficient for both large and small runs, with outstanding binding quality thanks to the adjustable strong pressing device

Technical Specifications:

- Clamps: 4

- Spine gluing: Hotmelt

- Milling unit: with extraction

- Milling depth: adjustable, max. 3 mm

- Cover feeding: suction feeder with four-fold scoring

- Paper size: max. 320 x 320 mm; min. 75 x 75 mm

- Cover size: max. 500 x 324 mm; min. 220 x 140 mm

- Book thickness: 0.5 mm – 40 mm

- Cover thickness: 100–300 g/m²

- Cover pile height: max. 200 mm

- Output: max. 1,100 cycles/hour

- Dimensions: 2,940 x 1,395 x 1,588 mm

- Power: 400V/50Hz – 4.5 kW

- Weight: 1,220 kg

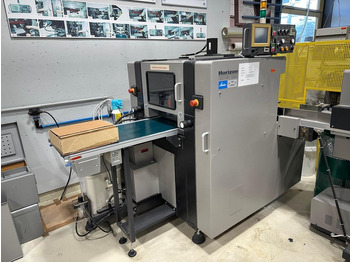

Horizon HT-70 Three-Knife Trimmer, used

The Horizon HT-70 is a powerful and robust three-knife trimmer that can be operated both inline and offline. It is excellently suited for precise finishing of books and brochures.

Key Features:

- High productivity with up to 1,000 cutting cycles per hour

- Clean and precise cuts without rough edges

- User-friendly LCD display for easy operation and status monitoring

- Flexible processing of various product sizes

- Quick changeover times of less than 10 minutes

- Advanced interlocking system for operator protection

Technical Details:

- Cutting thickness: 2 - 50 mm

- Number of knives: 2

- Untrimmed dimensions: Maximum: 330 x 330 mm; Minimum: 148 x 105 mm

- Trimmed dimensions: Maximum: 300 x 300 mm; Minimum: 142 x 100 mm

- Dimensions (L x W x H): 2260 x 1160 x 1600 mm

- Weight: approx. 1530 kg
