Relieuse Horizon BQ-270V | 371.000 | 2011

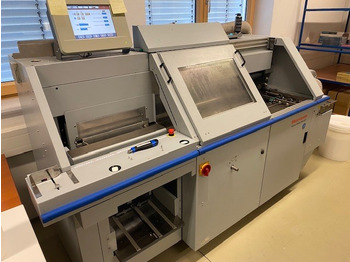

Horizon BQ-270V Single-Clamp Perfect Binder, Used

The professional perfect binder for flawless binding. A fully automatic machine with particularly robust construction, designed for processing hotmelt adhesives. Also suitable for small and ultra-short runs, down to single copies.

The Horizon BQ-270V is a single-clamp automatic binder with automatic cover feeding, delivering consistently high-quality, perfectly bound books with one-person operation. With its Touch&Work technology, Horizon revolutionizes the operation of finishing machines: setup is quick and easy, with minimal changeover times, increasing both flexibility and cost-effectiveness.

Key Features

- Processes books from 1 to 50 mm thick and spine lengths from 135 to 320 mm, with a cycle rate of up to 500 books per hour.

- Standard milling station equipped with additional notching knives and dust brushes.

- Milling depth adjustable up to 3 mm.

- Automatic cover feeder with suction drum for secure, consistent positioning to the book block.

- Standard creasing unit for 4-fold creasing of the cover, which adjusts automatically and precisely. 2-fold creasing is optional.

- Standard measuring station for block thickness: measurement occurs during machine operation, making it significantly faster than measuring in the clamp. Highly efficient for short runs and single-copy production.

Technical Specifications:

- Binding Size: 135–320 mm (spine), 110–310 mm (block, max 320 mm), 1 (3 with creasing)–50 mm thick

- Cover Feeder: Suction drum feeder, loading capacity 70 mm

- Cover Formats: Min. 240 x 135 mm, Max. 660 x 320 mm

- Cover Thickness: 90–300 g/m²

- Creasing: 4-fold positive/negative creasing

- Performance: Max. 500 cycles/hour (actual output depends on block thickness, milling depth, and operator)

- Power Supply: 400 V three-phase, 16 A, 2.7 kW

- Adhesive Type: EVA hotmelt

- Dimensions (mm): 2430 x 910 x 1500

- Weight: 900 kg

All-Inclusive Service Package

We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.

Sustainable and Economical

Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
