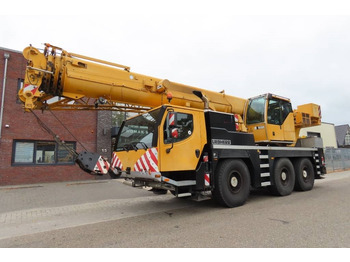

Grue tout-terrain Liebherr LTM 1050-3.1

Main Data:

Model / Type of crane LTM 1050-3.1 / AT

Max. capacity (75%) / max. loadmoment (tm) 50 t at 3 m / 176 tm

Year / First taken into operation 2017 / 04.01.2018

Working hours chasis (h) / date 1403 h / 26.01.2021

Working hours superstructure (h) / date 2609 h / 26.01.2021

Mileage (km) / date 33821 km / 26.01.2021

Data Chassis:

Truck chassis type / Width A30B / 2,54 m

Carrier cabin wide

Aircondition existing / available

Engine (make/type) / hp / kW Liebherr D 936 A7-04 / 267 / 270

Engine exhaust-stage IV / SCR

Gearbox manufacturer / Type ZF / SG / Traxon

Crane driveable from above + below

Eddy current brake Telma

Drive and steering 6 x 6 x 6 / 1/2/3.

Type of axle suspension Niveaumatic

Size of wheels 16.00 R 25

Sparewheel 1

Controlled from support Bluetooth, above

Support basis L/B 7,16 x 6,40 m

Trailer coupling D19

Tackle box at rear of carrier existing / available

TÜV / SP-acceptance validity 01.22 / 07.21

Data Superstructure:

Telescopic boom / boom sections 11,4 - 38 m / 4

Swing-away jib / Adapter 9,2 m / 0/20/40/60°

No. of winches 1

Winch 1 cable pull / cable Ø 45 kN / 15 mm

Hookblocks / Crane hook (t) 30,2 t / 4,5 t

Counterweight (t) 7 t / 2 t

Working area limitation existing / available

Two working floodlights at pivot section electrically adjustable existing / available

Aircondition existing / available

Safe load indicator Liebherr LICCON 2 / 75 %

UVV-acceptance validity 01.22

Other features:

box for support timber; immobilizer; LICCON data logger with evaluation software - Liftanalyser; set of sheaves for assembly jib

Subject to change.

Subject to prior sale.

Complete data sheet on request.
