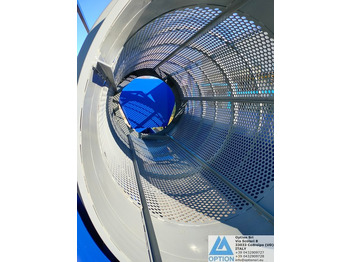

Crible neuf ROT160EMP trommel screener

Drum diameter 1600mm

-Drum length 2880-3880-4880mm

-Working length 2000-3000-4000mm

-Productivity 20/30 tons/hour

-Grid holes as per your specifications

-The screen is made of a closed profile

-A cleaning brush with a diameter of 300 mm is mounted on the screen and along the entire length of the working part

-Flat bar blades installed in the center of the drum allow the material to be poured

-Drum rotation speed approx. 11.5 rpm

-Screen feed via gearmotor-Drum transmission via gearmotor + 2 rubber drive wheels diameter 230 mm

-Screen equipped with electrical panel

-Feed hopper with belt advancement adjustment via variator, 1500 mm wide basket, 3500 mm long, 1200 mm high, basket conveyor, 3500 mm long, 650 mm wide belt, rubber chevron type

-12 months warranty

-Made in Europe

-CE compliant
